I. Product Overview

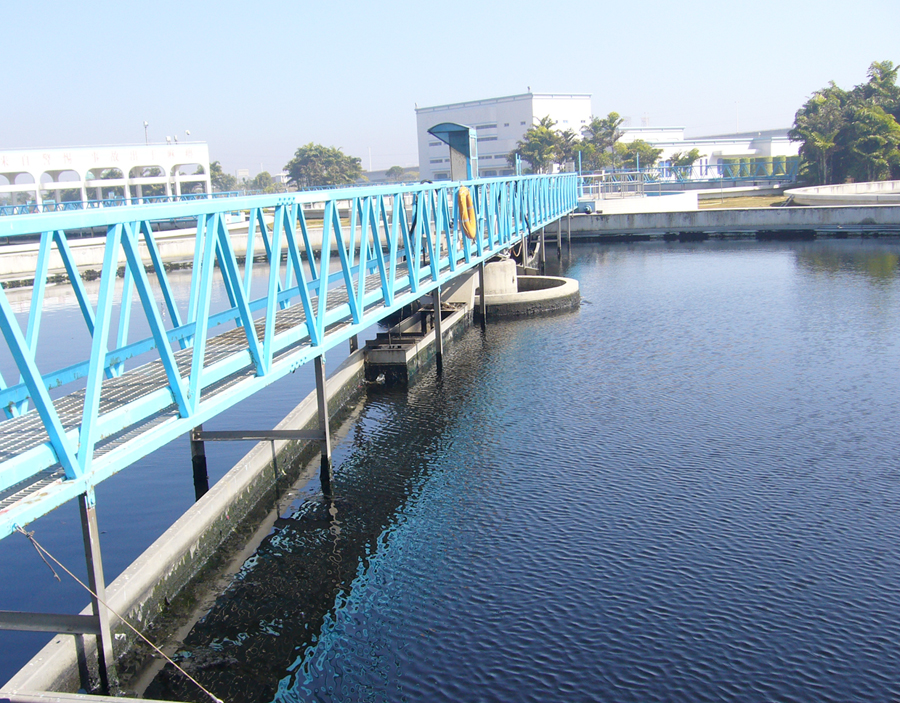

ZXG type center drive sludge scraper products are suspended center drive scrapers. The total load of the scraper is
placed on the bridge center. The center drive mechanism makes the scraping and gathering device rotate, and
sludge at the bottom of the tank is scraped and gathered by directional scraping plate to the central sludge pit, and
then discharged by hydrostatic pressure. This product is applied to radial flow sedimentation tank with small tank
diameter.

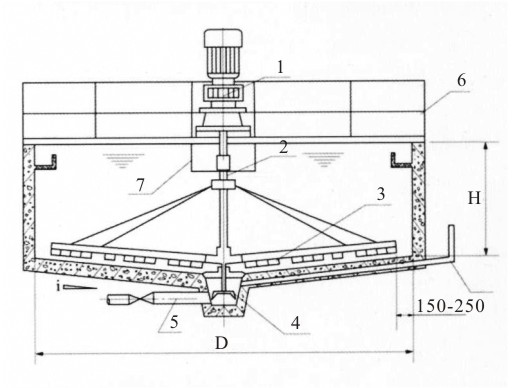

1、reducer 2、drive shaft 3、rake rack 4、sludge scraping blade 5、sludge discharge pipe
6、bridge 7、distribution flow tube 8、lubricating water pipe
II. Performance Features
1. Simple structure, convenient operation, and high scraping efficiency.
2. Provided with electrical overload protection device.
3. Manual/electric lifting device is optional.
III. Technical Parameters
Model
Tank diameter D(m)
Tank depth H(m)
Peripheral linear speed
(m/min)Driving power
(kw)Weight of steel structure
(kg)ZXG3
3
3
1-2
0.37
2500
ZXG4
4
3.5
1-2
0.37
3200
ZXGS
5
4
1-2
0.37
3800
ZXG6
6
4
1-2
0.37
4000
ZXGS
8
4.5
1-2
0.55
5000
ZXG10
10
4.5
1.5-2.5
0.55
6000
ZXG12
12
5
1.5-2.5
0.55
6800
ZXG14
14
5
2-3
0.75
7600
ZXG16
16
5
2-3
0.75
8300
ZXG18
18
5
2-3
0.75
9100
IV. Control System
The control system is optional or to be equipped by the user. It can be used locally when plugged in.
On/off buttons and on/off accident signal lamps are designed for on-site electric cabinet. In order to reduce energy
consumption, all signal lamps are energy-saving type, and motor protector is provided. PLC remote control interface
can be set for the control cabinet. This electric cabinet is provided with anti-corrosion carbon steel or stainless steel
housing for outdoor use.
