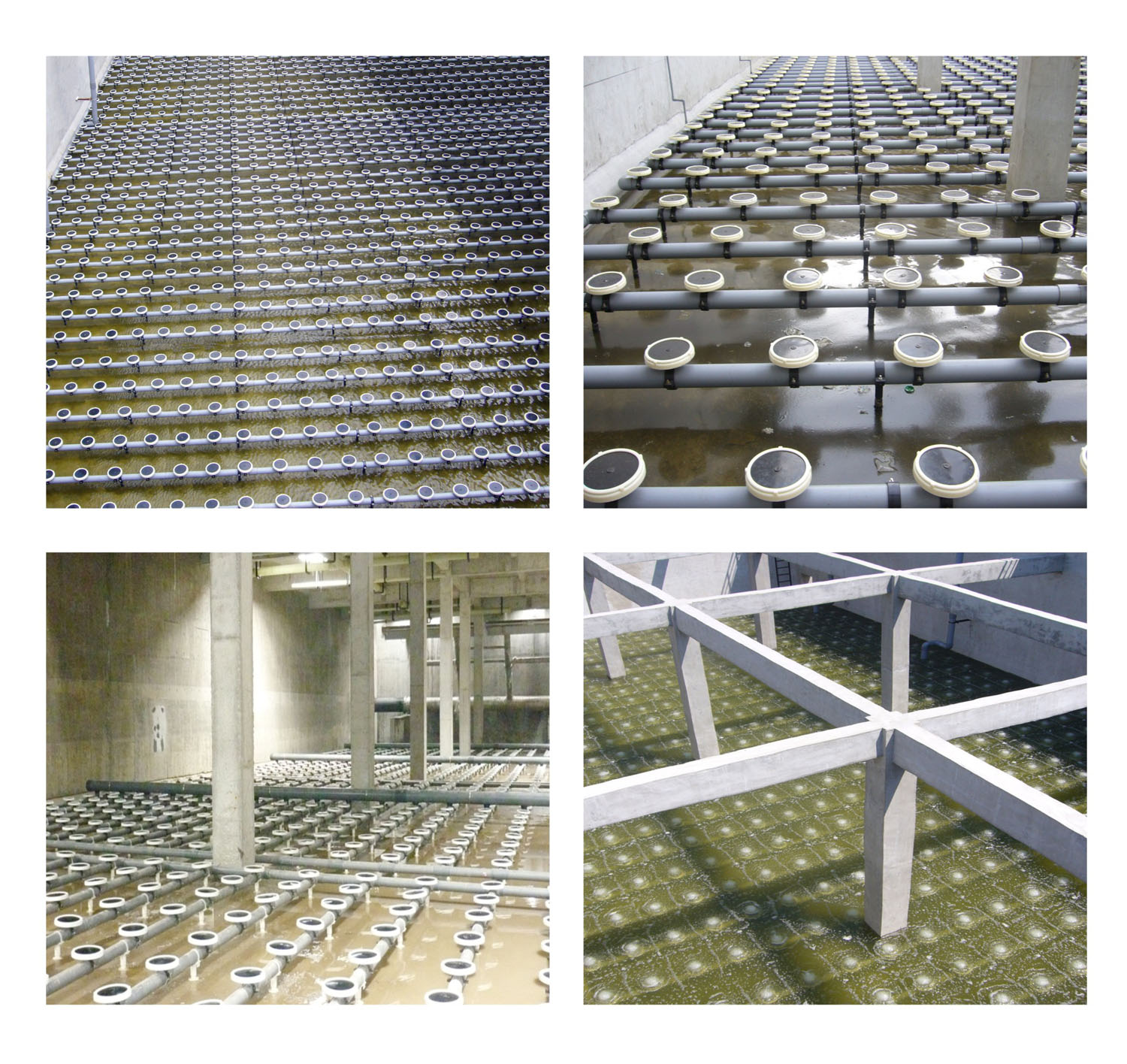

- Project Case
I. Product Overview

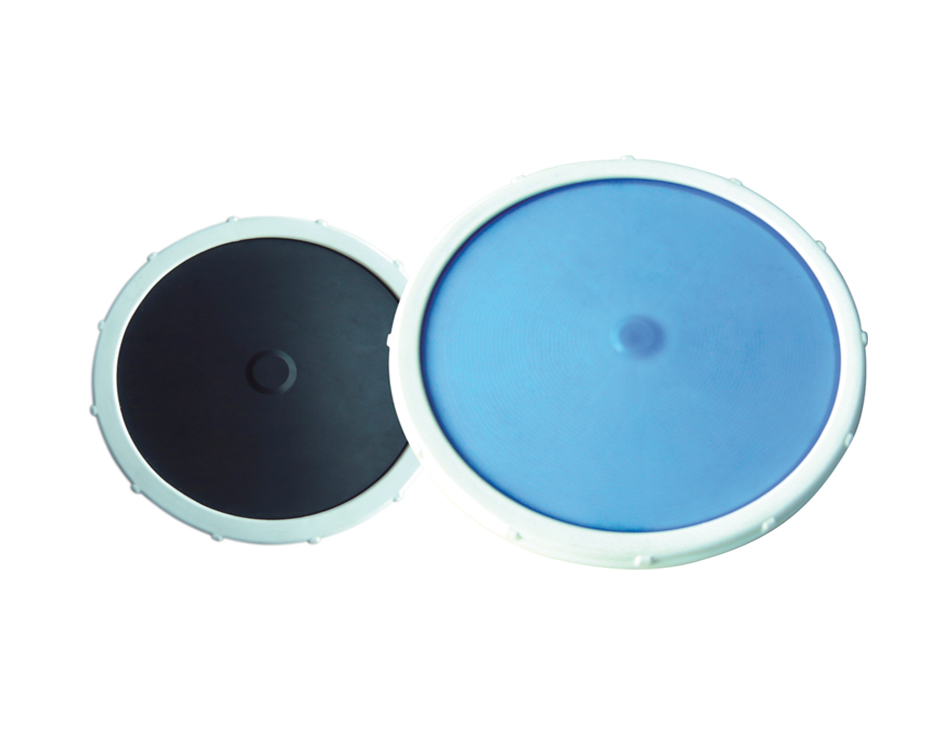

U&D fine bubble disc diffuser has the features of U&D fine bubble membrane diffusers. Its support is made of ABS
or PP+ fiberglass materials. Its standard membrane is EPDM membrane with precise pores favorable for high
oxygen transfer and utilization. In order to adapt to different requirements of sizes for aeration system, different slit
lengths, distances and pore opening density are used to regulate the working pressure. According to customer
needs, silicone rubber membrane and polyurethane membrane are also supplied as substitutes.
II. Technical Parameters
Model
UD240
UD270
UD300
UD350
Membrane material
EPDM /Silicone/PU
EPDM /Silicone/PU
EPDM /Silicone/PU
EPDM /Silicone/PU
Membrane thickness
2.0mm
2.0mm
2.0mm
2.0mm
Diffuser surface area
0.0235m²
0.0531m²
0.0615m²
0.0804m²
Slit quantity
3,690
6,750
9,530
12,620
Bubble diameter
0.8-9mm
0.8-9mm
0.8-9mm
0.8-9mm
Service life of membrane
> 5 years
> 5 years
> 5 years
> 5 years
Standard air flow
2m³/h
3m³/h
4m³/h
5m³/h
Airflow range
1-6m³/h
1-8m³/h
1-12m³/h
1-16m³/h
Resistance loss
1.5-4.3kPa
1.5-4.3kPa
1.5-4.3kPa
1.5-4.3kPa
SOTE
≥38% (6m water depth)
≥38%(6m water depth)
≥38% (6m water depth)
≥38% (6m water depth)
Standard oxygen capacity
≥0.31kg02/h
≥0.42kg02/h
≥0.67kg02/h
≥0.75kg02/h
Theoretical dynamic efficiency
≥8.9kg02/kw.h
≥8.9kg02/kw.h
≥8.9kg02/kw.h
≥8.9kg02/kw.h
Working area
0.1-0.7m²/ per
0.2-1.0m²/ per
0.3-1.5m²/per
0.5-2m²/ per
III. Airflow Rate
IV. Product Structure
