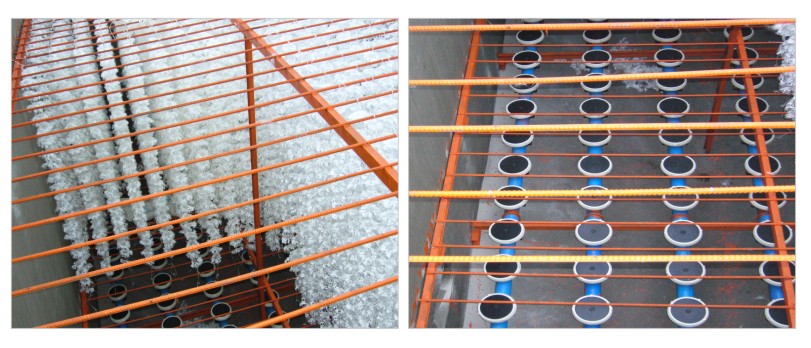

- Project Case

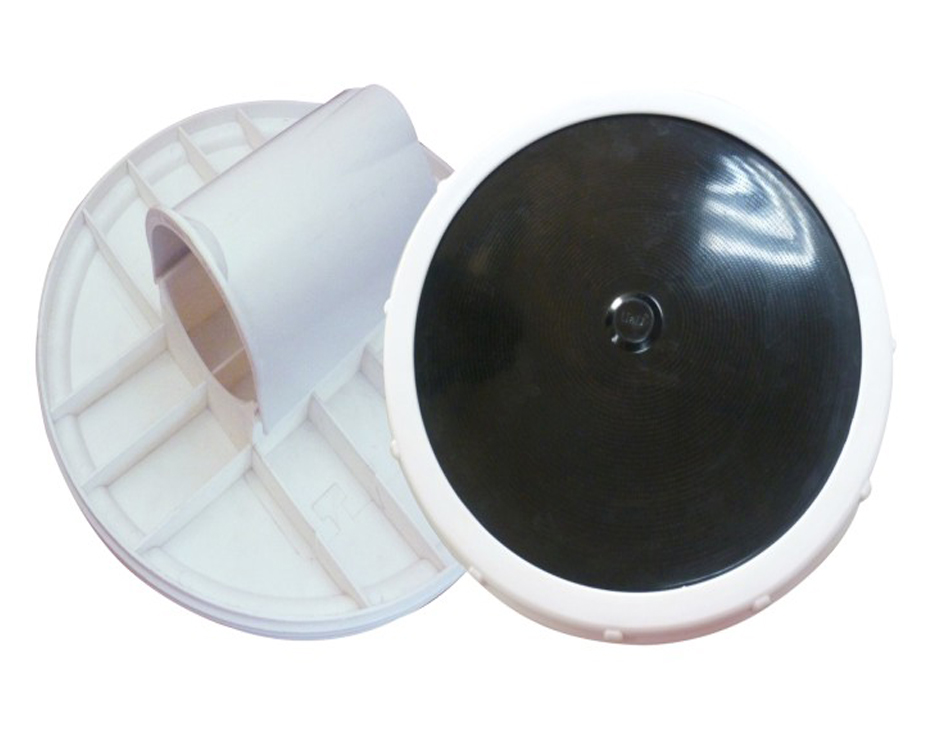

I. Product Overview
New UD 350 disc diffusers have the advantages of easy and convenient installation, low pressure loss, wide scope
of aeration, double check valve design being capable of preventing backflow of liquid, membrane injection molding
quality package, bolt locking without clamp, preventing peeling of membrane and high oxygen transfer efficiency.
Therefore, the products are the first choice for municipal wastewater treatment, and sewage treatment in industry,
food and printing and dyeing industries.
II. Technical Parameters
Model
UD350N
Membrane material
EPDM/Silicone /PU
Membrane thickness
1.8-20mm
Diffuser surface area
0.0804m2
Slit quantity
12620
Bubble diameter
0.8-1.9mm
Service life of membrane
> 5 years
Standard air flow
5 m3/h
Airflow range
1-16 m3/h
Resistance loss
1.5-4.3kPa
SOTE
≥38%(6m water depth)
Standard oxygen capacity
≥0.75kgO2/h
Theoretical dynamic efficiency
≥8.9kgO2/h
Working area
0.5-2. m²/ per
III. Application
Municipal wastewater treatment, food / beverage industry, beer industry, pharmaceutical industry, leather industry,
papermaking industry and printing and dyeing industry

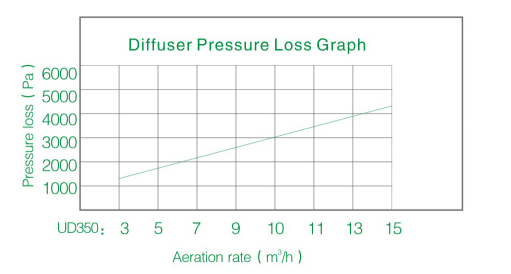

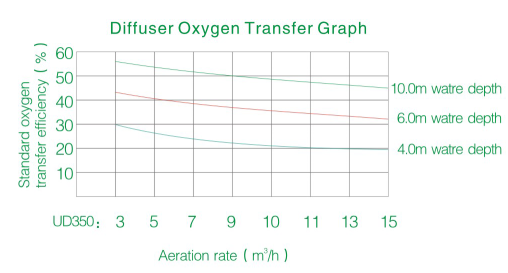

IV. Airflow Rate

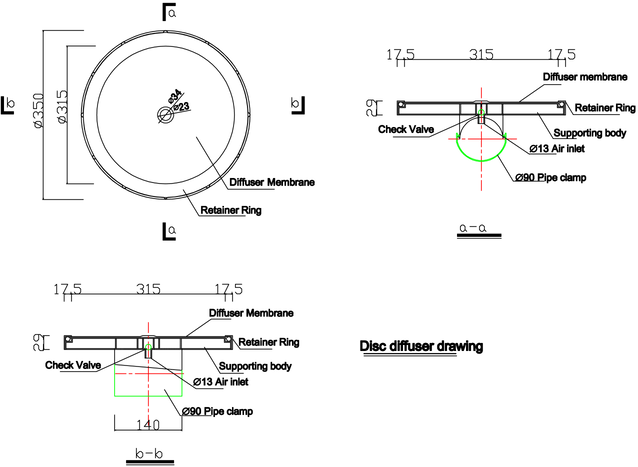

V. Product Structure
