I. Product Overview

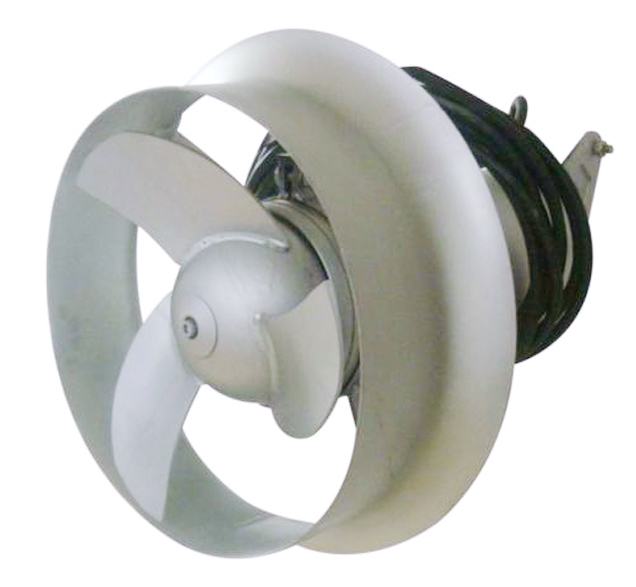

QJB submersible mixer is one of key devices for achieving homogenization and flowing of solid-liquid two-phase
flow and solid-liquid-gas three-phase flow during the water treatment process flow. It comprises submersible
motor, impeller and installation system.
The submersible mixer is the directly connected structure with the advantages of compact structure, low energy
consumption and ease for maintenance and care. Impeller is formed by precision casting or punching, so it has
high precision, large thrust force and simple and beautiful streamline appearance, with function of preventing winding.
The product is applicable for the premises needing solid-liquid mixing.
II.Features
1.Two independent mechanical seals that can ensure long-time reliable running of submersible motor
2.High quality imported disposable lubricating bearing, with design service life of 100,000 hours
3.Unique cable sealing design eliminates the hazard of water leak
4.Stainless steel, carbon steel precision casting or punch welding impeller, which is sweepback after optimum
design, with high efficiency and self-cleaning function
5.Motor shaft utilizes stainless steel materials, and rotor after dynamic balance testing, running stably
6.Inside equipping with leak sensor and stator winding protective alarm against high temperature

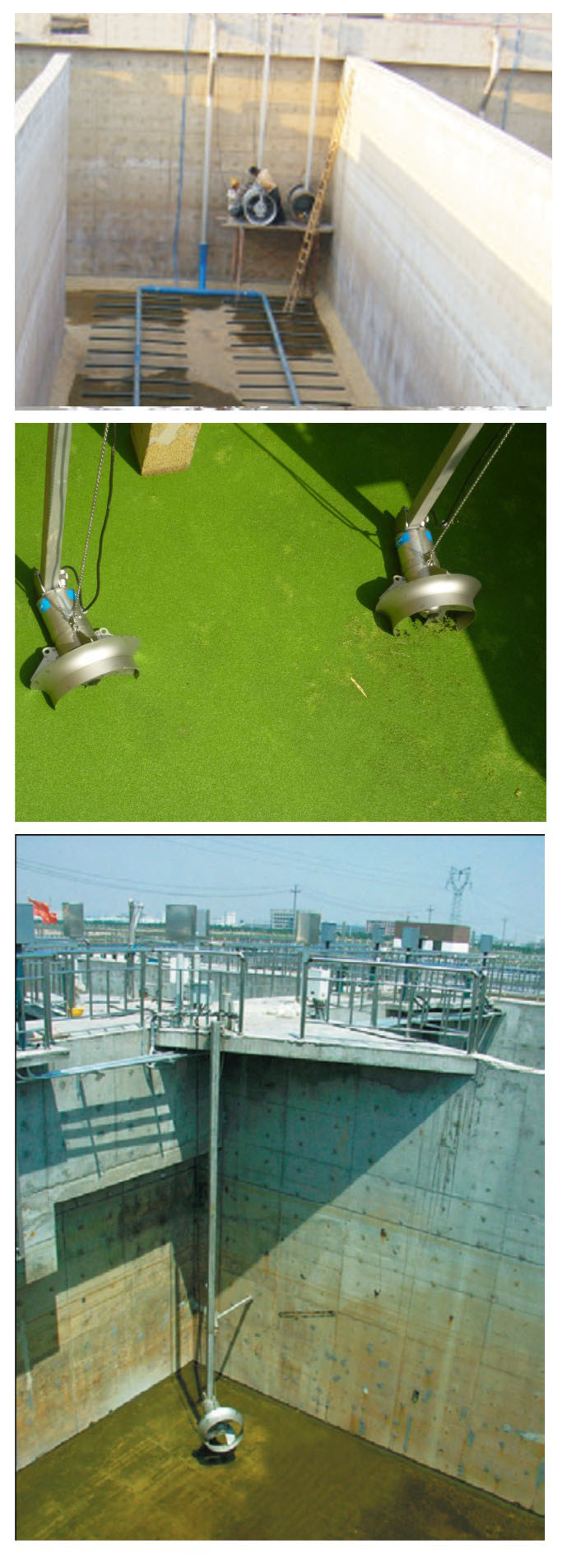

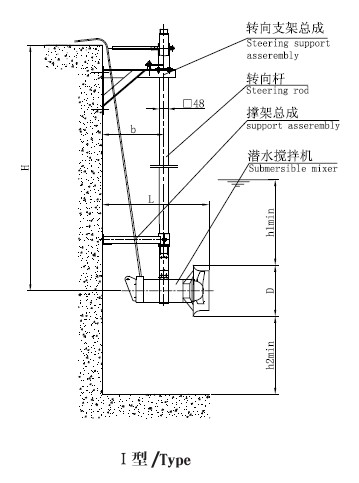

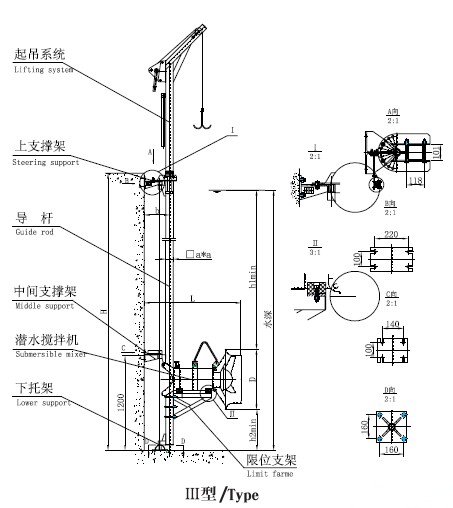

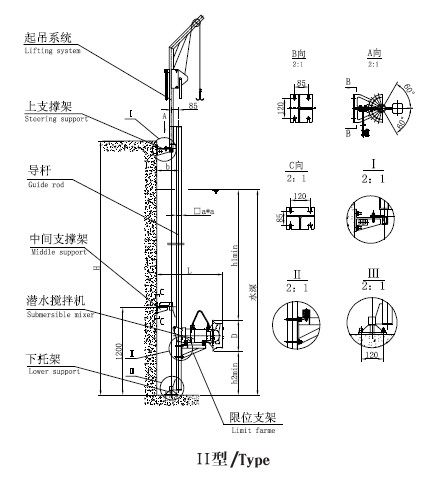

III. Installation Diagrams
