I. Product Overview
The single-stage high-speed turbo blower of this series is a new concept blower, characterized by high efficiency,
low noise, energy conservation, environmentally-friendliness and quite superior performance. The use of the three
core high technologies of “high-speed direct motor”, “air suspension bearing” and “air cooling system” renders
possible the absence of such systems as increasing gear, coupling, lubrication system and cooling blower that
are necessary for the traditional single-stage turbine blower, thus greatly improving the performance and
running reliability of the product.
II. Technical Features

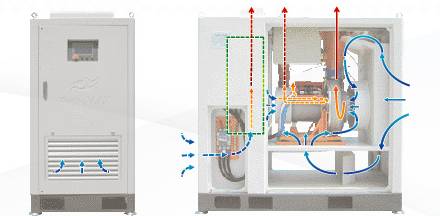

The blower uses the air self-cooling technology, and its air passage is rationally and ingeniously designed. The
motor radiation fin is designed using the excellent aerial mechanical design and manufacture technology.
The large blower of within 300HP is provided with the internal circulation system of refrigerant, and so no
cooling blower or cooling water make-up is needed. This kind of cooling design ensures that the blower
can work well even in summer.
